Water Jetting Motor-Pumps


Please contact us to discuss your submersible electric motor, subsea electric motor, ROV

Subsea Submersible electric motors and ROV HPU's.

Contact.

Email: sales@silvercrestsubmarines.com

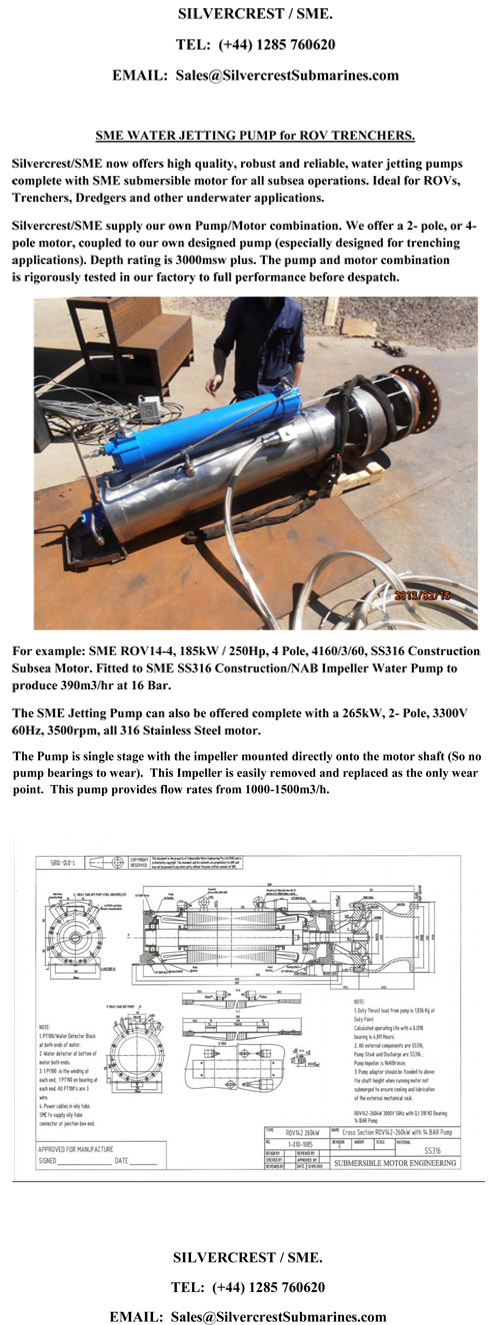

SME Water Jetting Pump Press Release

Silvercrest / Submersible Motor Engineering specialize in the bespoke manufacturing of submersible motors, Rov motors, and subsea motors, motor-pump sets, and HPU's for use on Rovs, subsea trenchers, subsea ploughs, dredgers and water lift pump systems. For use in the offshore Oil and Gas and Telecommunications industries, and subsea to depths of 4000m.

We offer a range of motors, motor-pump sets, ROV HPU, submersible, subsea and Rov motors (5hp to 1500hp) for use in the more popular classes of subsea ploughs and Rovs. All of these motors are available in either SS316, Duplex, Super Duplex stainless steel, or with a hard anodized aluminium finish.

We can offer subsea submersible motors with a wide range of speeds and voltages (including 3000v, 6000v and 10,000v).

We refurbish and service a wide range of submersible motors.

Description: Description: http://www.silvercrestsubmarines.co.uk/images/Subsea_Motors_pictures_000.jpg

Silvercrest / Submersible Motor Engineering is the world leader in submersible motor technology, enabling our customers to explore deeper underwater than ever before.

High power, high voltage and high-pressure specifications are common place for many of our clients.

Our submersible subsea and ROV motors are the best on the market today, offering a comprehensive choice of materials and design to underwater and ROV operators.

Silvercrest / Submersible Motor Engineering specializes in all aspects of submersible electric motor operation, performance, and design.

Due to industry demand for readily available quality parts, we also rewind, repair, redesign, and machine major components of other manufacturer's motors that require repair and re-manufacture.

CONTACT US TODAY TO DISCUSS YOUR SUBSEA MOTOR REQUIREMENTS.

Email: sales@SilvercrestSubmarines.com

SME(UK) now offer a complete submersible electric motor repair facility for:

Rewinds / rebuilding /electrical conversion / construction modification.

We also design and build specialized motors for use SUBSEA for the offshore industry.

Installation and start-up technical support.

Have a problem and need help with your subsea motor, then we offer the best choice in consulting services.

Troubleshooting. Any type of mechanical repair. Shaft. Bearings. End bells. Seals. Testing.

Repair and rewind of large high voltage (500kW 6600V) submersible electric motors.

SME High Temperature Submersibles in 6"to 20" frames suitable for operation in ambients of 75 Deg.C

High Voltage water filled submersible motors-3300V,4160V and 6600V.

Upgraded Temperature Monitoring unit available with new improved user friendly parameter setting.

SME ROV and Subsea motors suitable for depths of 4000m.

ROV HPUs. Subsea Motor-pump sets.

SME WATER JETTING PUMP for ROV TRENCHERS.

Silvercrest/SME now offers high quality, robust and reliable, water jetting pumps complete with SME submersible motor for all subsea operations.

Ideal for ROVs, subsea Trenchers, Dredgers and other underwater applications.

Silvercrest/SME supply our own Pump/Motor combination.

We offer a 2- pole, or 4-pole motor, coupled to our own designed pump (especially designed for trenching applications).

Depth rating is 3000msw plus.

The pump and motor combination is rigorously tested in our factory to full performance before despatch.

Description: Description: http://www.silvercrestsubmarines.co.uk/images/SMEmotor-pumpsetwithheatexchanger.JPG

Description: Description: http://www.silvercrestsubmarines.co.uk/images/20130618_150946_resized_000.jpg

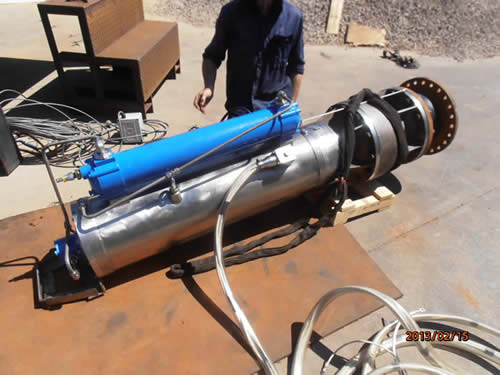

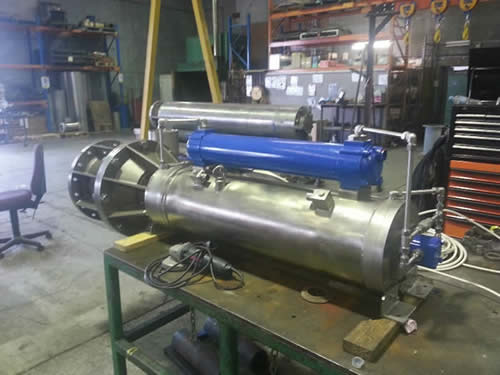

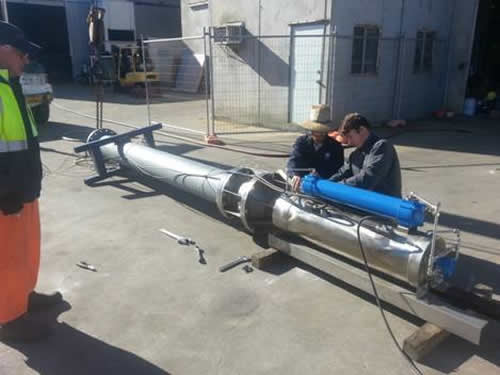

SME 260kw motor pump set with heat exchanger attached.

We recently delivered ten 260kW, 3000VAC, double ended, 2 pole, stainless steel bodied motors for use on a fleet of sub-sea trenchers. This was a bespoke order that was completed in just six weeks from receipt of order.



Description: Description: http://www.silvercrestsubmarines.co.uk/images/IMG_20881_001.jpg

Description: Description: http://www.silvercrestsubmarines.co.uk/images/ROV142-265kWwithPumpB111_001.JPG

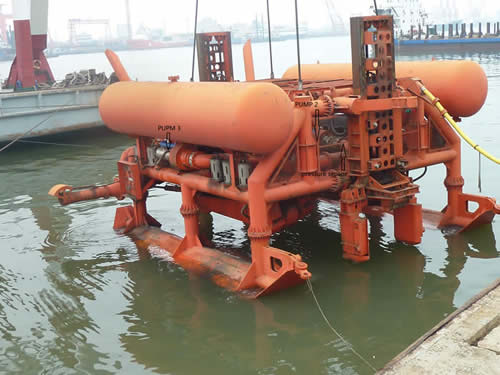

Subsea Trencher fitted with our SME 142-265KW stainless steel construction submersible motor and pump.

Description: Description: http://www.silvercrestsubmarines.co.uk/images/Underwaterdiggerinaction_000.JPG

Description: Description: http://www.silvercrestsubmarines.co.uk/images/75KwdoubleendedmotorsfittedtoUWdigger_000.JPG

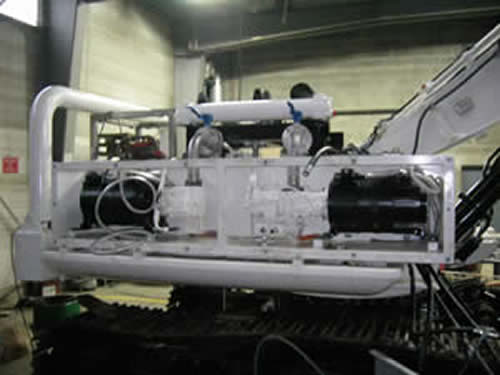

Two submersible double-ended motors mounted with hydraulic pumps, fitted to a submarine digger.

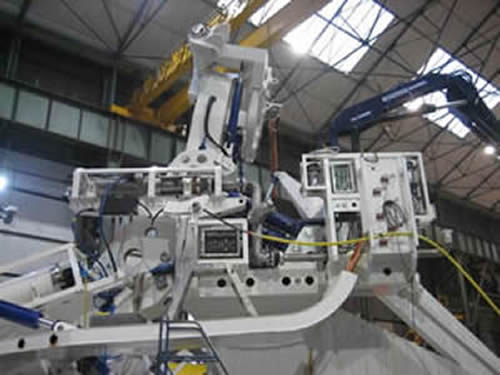

Subsea ROV Trencher fitted with SME motor- Pump set.

SME ROV14-4, 75kW/100HP, 4–pole, 3000/3/60, Anodised Aluminium Subsea Motors with Interface to suit the Hydraulic Pumps.

We manufacture and rebuild very large submersible motors for a range of other offshore and subsea companies. These include:Global Marine, CTC, Sonsub, Star Energy, Sulzer Wood, Sulzer, Fugro, Apache, BHP Billiton, Petronas, SMD, Exxon Mobile, Chevron, Perry Slingsby, Subsea7, Bayu Purnama, ISE Ltd, Saudi Aramco, Woodside, PXP.

SME MOTOR-PUMP SET for ROV TRENCHERS.

Silvercrest / Submersible Motor Engineering can supply our own Pump/Motor combination.

We offer a 2- pole, or 4-pole motor coupled to our own designed pump (especially designed for trenching applications).

Depth rating is 3000msw plus. The pump and motor combination is rigorously tested in our factory to full performance before despatch.

For example : SME ROV14-4, 185kW 250H, 4 Pole, 4160/3/60, SS316 Construction Subsea Motor. Fitted to SME SS316 Construction/NAB Impeller Water Pump to produce 390m3/hr at 16 Bar.

High voltage subseaTrencher motors for water jetting.


200 KW, Volts 3000V, 60HZ, 4 Pole, 1750 RPM, Compensation Oil Filled. Power Connector Burton. Sensor Connector Subconn. This motor will be coupled with a Rexroth Pump A4VSO 250 DR.


ROV14, 200kW 335HP, 4-Pole, 1800rpm, 3000/3/60, Anodised Aluminium
Construction Subsea Motor to Drive Hydraulic Pump. This pump will be fitted to the motor at our factory, matched and tested.

150 KW, 3000V, 60HZ, 2 Poles, 3500 RPM, Compensation: Oil Filled. Power Connector: Burton. Sensor Connector: Subconn. This motor will be coupled with a Pleuger water pump.

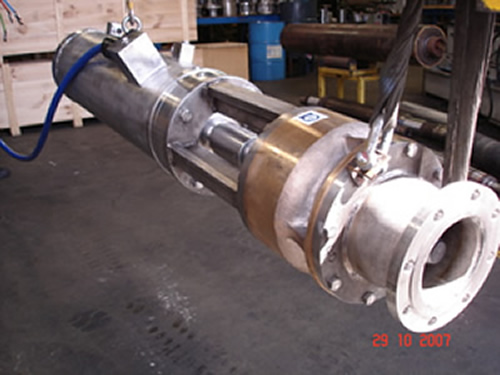

SME ROV14-2, 200HP 150kW, 2 pole, 3000/3/60, SS316 Stainless Steel Construction Motor to suit operation with Water Jetting Pump.

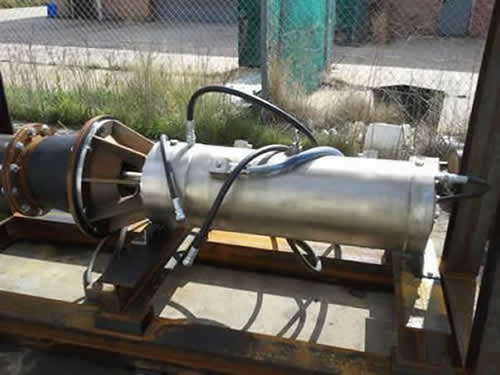

SME ROV14-2 motor, 265kw 2-pole 3000/3/60 with Stainless Steel Construction. Fitted with a PTS Sterling 350D-1 ZFB Pump (wet end only). Operating at 2- pole, 60 hertz. Thrust developed at duty: 1820kg. Thrust at Shut-off: 3016kg. Approx. length of pump: 750mm. Bowl diameter: 340mm.

SME ROV14-2 300kw 2 pole 3000/3/60 Oil filled Stainless Steel Motor with In built Circulation System and Heat Exchanger coupled to a Sterling 300M-3 Zinc Free Bronze Pump with a duty of 828cu.m/hr at 9 Bar.

SME WATER JETTING PUMPS for ROV TRENCHERS.

SME now offers high quality, robust and reliable, water jetting pumps complete with SME submersible motor for all subsea operations.

Ideal for ROVs, Trenchers, Dredgers and other underwater applications.

Silvercrest/ Submersible Motor Engineering supply our own Pump/Motor combination. We offer a 2- pole, or 4-pole motor, coupled to our own designed pump (especially designed for trenching applications).

Depth rating is 3000msw plus.

The pump and motor combination is rigorously tested in our factory to full performance before despatch.

For example: SME ROV14-4, 185kW 250Hp, 4 Pole, 4160/3/60, SS316 Construction Subsea Motor. Fitted to SME SS316 Construction/NAB Impeller Water Pump to produce 390m3/hr at 16 Bar.

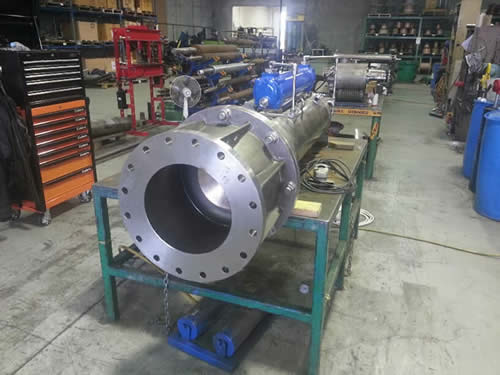

The SME Jetting Pump can also be offered complete with a 265kW, 2- Pole, 3300V 60Hz, 3500rpm, all 316 Stainless Steel motor. The Pump is single stage with the impeller mounted directly onto the motor shaft (So no pump bearings to wear). This Impeller is easily removed and replaced as the only wear point. This pump provides flow rates from 1000-1500m3/h.

Description: Description: SME water jetting pump.jpg

Description: Description: http://www.silvercrestsubmarines.co.uk/images/20130618_150946_resized.jpg

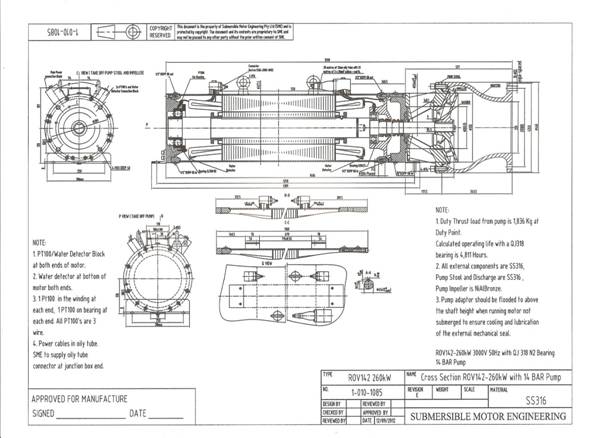

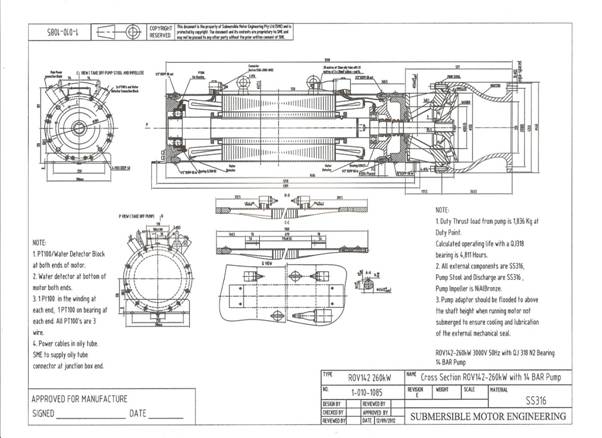

Description: Description: SME Jetting Pump drawing.jpg

SILVERCREST / SME.

TEL: (+44) 1285 760620

EMAIL: Sales@SilvercrestSubmarines.com

Rov and Subsea Plough and Trencher Motors.

Silvercrest offer an established range of Rov motors ranging from 5HP to 500HP. All of these motors are available in either SS316 or Hard Anodized Aluminium finish. We will also design and build submersible motors to suit your individual requirements and subsea project.

Our motors are in use with most of the major operators worldwide such as Saipem, SMD Hydrovision, Sonsub, CTC Marine Projects, Impresub, Fugro, Thales, MTQ, LD Travocean and Canyon Offshore.

Description: Description: http://www.silvercrestsubmarines.co.uk/images/IMG_23691.jpg Description: Description: http://www.silvercrestsubmarines.co.uk/images/MVC-006S_000.JPG

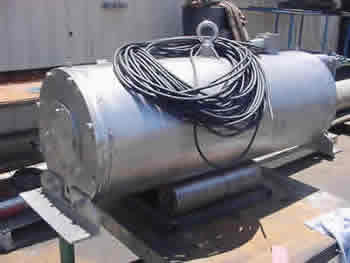

265KW Trencher Motor. 400Kw Motor/3000vac for Subsea Trencher.

Motor-pump sets (depth rated to 3000m) for subsea trenching operations.

Silvercrest / Submersible Motor Engineering has recently manufactured and supplied two 265kw motor-pump sets for SMD-Hydrovision (England). The package comprised 265kw subsea motors, 2-pole, 3000v, 3ph, 60hz.

Together with Jetting Pumps (wet end only, operating at 2-pole, 60 hertz). The motors were a stainless steel construction, and the pumps Zinc Free Bronze. These motor-pump sets will be installed onto one of the world’s largest subsea trenching vehicles.

In addition, Silvercrest / Submersible Motor Engineering has manufactured and delivered in just eight weeks from order, two water

turbine pumps to CTC Marine Projects based in Teeside (England). The pumps will be used by CTC, in conjunction with Silvercrest / Submersible Motor Engineering submersible 260Kw motors, on their subsea plough and trenching vehicles worldwide.

Description: Description: http://www.silvercrestsubmarines.co.uk/images/GeoceanunderwaterdiggerwithSME75kwmotors.jpg

Subsea Digger (pictured above) fitted with SME ROV14-4 75Kw/100HP, 4-pole, 3000/3/60, anodised aluminium subsea motors. Double-ended motors with Interface to suit Sauer and Kawasaki Hydraulic Pumps.

SME ROV10-4, 40kW, 4 Pole, 3000/3/60, SS316 Construction Subsea Motor fitted with PTS Sterling 350C-1, 316SS Submersible pump to deliver 88 litres per second at 21 meters total developed head. Duty Power: 27.5 kW. Duty Thrust: 575 kg, NOL Power: 28.2 kW. Shut Head Thrust: 860kg.


SME ROV10-2, 22kW, 2 Pole, 300/3/60 SS316 Construction Subsea Motors, fitted with PTS Sterling 200E-1, 316SS Submersible pumps to deliver 44 litres per second at 21 meters total developed head. Duty Power: 16.6 kW. Duty Thrust: 250 kg, NOL Power: 17.5 kW. Shut Head Thrust: 400 kg.

SME ROV14-4, 150kW, 4 Pole, 4160/3/60, SS316 Construction Subsea Motor. Fitted to SME SS316 Construction/NAB Impeller Trenching Water Pump to produce rated Pump performance. Motor fitted with Thermex/Fluidex Heat Changer, circulation Gear Pump, and Associated Plumbing. Horizontal or Vertical Operation. Unit to be tested at rated performance in SME Test Facility.

SME WATER JETTING PUMP for ROV TRENCHERS.

SME now offers high quality, robust and reliable, water jetting pumps complete with SME submersible motor for all subsea operations. Ideal for ROVs, Trenchers, Dredgers and other underwater applications.

Silvercrest/SME supply our own Pump/Motor combination.

We offer a 2- pole, or 4-pole motor, coupled to our own designed pump (especially designed for trenching applications). Depth rating is 3000msw plus. The pump and motor combination is rigorously tested in our factory to full performance before despatch.

Description: Description: 20130620_102156(ETA) 20.06.13.jpg

Description: Description: http://www.silvercrestsubmarines.co.uk/images/20130618_150955_resized_1.jpg

For example:

SME ROV14-4, 185kW / 250Hp, 4 Pole, 4160/3/60, SS316 Construction Subsea Motor. Fitted to SME SS316 Construction/NAB Impeller Water Pump to produce 390m3/hr at 16 Bar.

The SME Jetting Pump can also be offered complete with a 265kW, 2- Pole, 3300V 60Hz, 3500rpm, all 316 Stainless Steel motor. The Pump is single stage with the impeller mounted directly onto the motor shaft (So no pump bearings to wear). This Impeller is easily removed and replaced as the only wear point. This pump provides flow rates from 1000-1500m3/h.

Description: Description: SME Jetting Pump drawing.jpg
