Silvercrest/SME Company Profile
Please contact us to discuss your submersible electric motor, subsea electric motor, ROV Submersible Subsea electric motors, and ROV HPU's.
Contact.
Email: sales@silvercrestsubmarines.com
Silvercrest/SME specialize in the bespoke manufacturing of submersible motors, HPU's, and pumps for use on Rovs, subsea trenchers, subsea ploughs, dredgers and water lift pump systems, for use in the offshore Oil and Gas and Telecommunications industries.
We offer a range of submersible motors(5hp to 1500hp) with a choice of voltages (ranging from 380vac to 6600vac) for use subsea to depths of 6000msw. All of these motors are available in either SS316, Duplex, Super Duplex, or Hard Anodized Aluminium finish. We can also design and build motors to suit your individual and special project requirements. In addition we refurbish, rewire, and service a wide range of submersible motors.
We recently delivered ten 260kW, 3000VAC, double ended, 2-pole, stainless steel bodied motors to a subsea operator, for use on their fleet of sub-sea trenchers. This was a bespoke order that was completed in just six weeks from receipt of order. In addition we also recently manufactured five (5) 400kw motors for SMD.

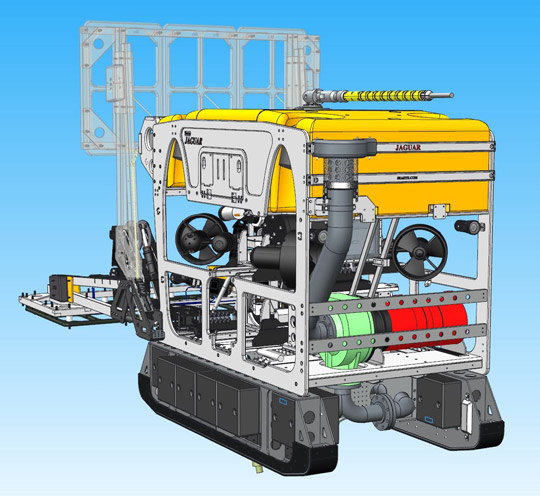

Examples of ROV Subsea Motors.
SME ROV14-2, 300kw 400HP, 2 Pole, 3300/3/60, SS316 Construction Submersible Motors to operate subsea water pumps. Motors fitted with Thermex Cooling Circuit and plumbing.

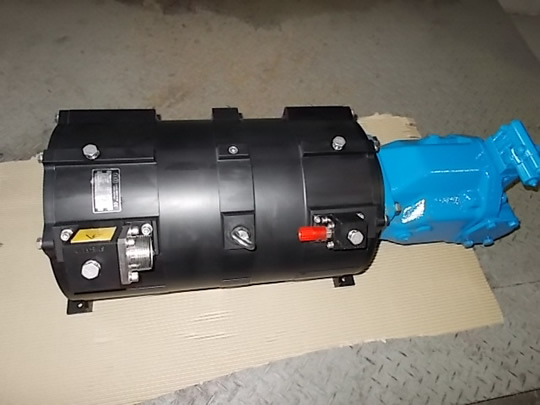

SME ROV10-4, 15kW 20 HP, 4 Pole, 3000/3/50, Aluminium Construction Subsea. Motor with flange and shaft to fit with Rexroth A10VSO18DFR Pump.

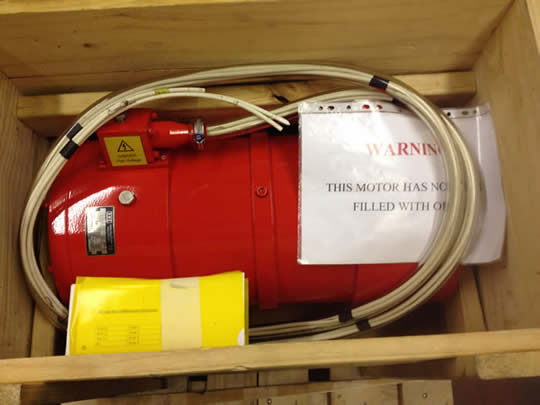

SME ROV14-4, 75kW 100 HP, 4 Pole, 3000/3/50, Aluminium Construction Subsea. Motor with flange and shaft to fit with Hydraulic Pump.

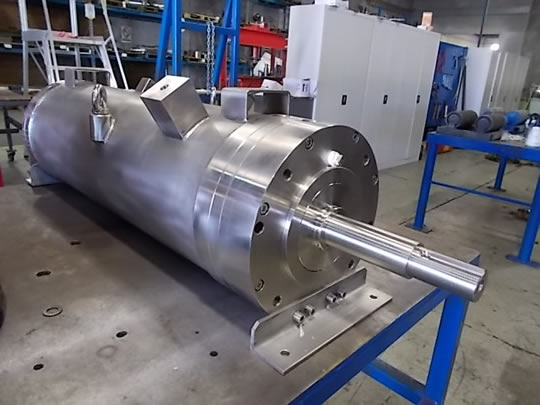

SME ROV14-4 200 kw 4 pole, 2400/3/50. SS316 construction subsea motor.

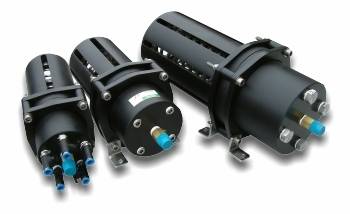

Oil Compensators for Subsea Motors.
Silvercrest/SME can offer oil compensator units, suitable for deep sea operation of our subsea motors. The most common choice is the 2.7L Compensator - 7 x 1/4" NPT (BSPT). SA-HC-0745-MAS.
This is a rolling diaphragm, positive pressure compensator (2700cc capacity), manufactured in corrosion resistant plastic suitable for ROV and tooling applications. These units are particularly suitable for compensating thrusters, oil filled junction boxes, valve packs, and other subsea applications. Size - 2700 cc. Delrin Plastic Construction. Grade 316 Stainless Steel Spring. Adjustable Pressure Relief Valve. Mounting Feet. Low Level Proximity Sensor Option.
We supply submersible motors, HPUs, and motor-pump sets to SMD, Fugro, Impresub, Saab SeaEye, LDtravocean, Geocean, and other subsea companies worldwide.
Silvercrest / Submersible Motor Engineering manufactures new Submersible, Subsea ROV Motors, and ROV HPUs. Also oil compensation units.
SME also services and repairs all brands of Submersible and ROV Motors. Including Hitachi, Pleuger, Grundfos, Mercury, Byron Jackson, Haywood Tyler, and Franklin.
With a compliment of 30 service orientated staff members, we have the ability to service and technically support all makes and models of Submersible Electric Motors at our Maddington, Perth facility. Our sales department, with a total of 75 years experience in the Submersible and Electric motor business, are happy to assist with any enquiries on the purchase of Submersible Motors, HPU, and motor-pump sets, ranging from 3.7kw to 1500kw, in various voltages and frequencies.
In our 1200 ft facility, purpose built for manufacture and service of Submersible Electric Motors we offer the following in-house services:
- Full Machine Shop capacity.
- Voltage Testing through 10,000 volts.
- ISO9001 quality assured workshop.
- An Overhead crane through 10 ton capacity.
- A state of the art Water Pressure Test facility with full international certification.
- High POT and Surge Testing.
- Full Load / Dyno testing to 250kw of all types of Electric Motors with detailed test reports.
- Balancing Facility available, to 250 kg.
- SME are a fully integrated manufacturing facility and in addition to our Standard range of submersible motors we also offer the following:
- Special Motors for specialist applications.
- 4 Pole, 6 Pole and 8 Pole motors.
- All Stainless Steel or more exotic material construction.
- Special Thrust ratings.
- Special Lead manufacturing.
- NEMA and other couplings in a variety of materials.
- Replacement parts of obsolete products.
- Technical assistance during Commissioning.
- Trouble Shooting.
- Repairs to all makes (Oil and Water filled).
- Rewinds of all Voltages (200 volt to 6.6kv) with 1 Year Warranty on all rewinds.
- Dynamic testing.
- Non-Destructive testing.
- Welding and Machining.
- On site or Factory Based Cable Splicing.
- Retro Fitting of Condition Monitoring Equipment.
- Modification of existing motors to upgrade them higher specifications.
- Refurbishment of ROV motors using more technically advanced materials.
Subsea Submersible Motors.
SME design and manufacture a world leading range of Subsea Electric Motors, Submersible Electric Motors, and ROV Electric Motors. For HPU's on ROV's, Electric Thrusters for Manned Submarines, and Heavy Duty Jetting Pumps on Subsea Trenchers. SME motors are robust and reliable in the toughest of environments.
Our flexible design capabilities mean we can manufacture Subsea, Submersible and ROV Motors to suit any application.
Our range of motors allow Flexible External Dimensions to suit all your requirements, and provide the possibility of "Drop In" replacement motors.
SME have produced over 100 different types of Subsea, Submersible and ROV motor.
We have manufactured thousands of motors, which have been supplied worldwide to our onshore and offshore customers.
We offer a variety of Construction Materials from Anodised Aluminium, to exotic Stainless Steel Alloys. To ensure long term reliability in varied environments, whilst still offering the advantages of light weight design. To ensure the integrity of the motors SME does not use castings, and all components are manufactured from solid metal or extrusions.
Our motors can be offered with a variety of Interfaces for Driven Equipment - from Robust Shafts with Multiple Shaft Seals, to Close Coupled Motors with Female Spline Hubs, to allow direct fitment of Hydraulic Pumps.
SME can design and manufacture from the "Lamination Up" to ensure the motor is ideally suited for your exact application. This bespoke manufacturing policy ensures we can meet any special design requirements that you may have. SME can build motors from Fractional Kilowatt Motors, right through to large outputs in the Megawatts and above to ensure we meet all requirements.
SME Subsea Motors can be manufactured in all voltages from 24V through to 6600V, at 50Hz or 60Hz, or for use with Variable Speed Drives. Due to SME's proprietary Insulation System, motors up to 4160V can be built with a Random Winding to reduce size and weight whilst losing nothing in terms of reliability. This insulation system is specifically engineered to ensure suitability of operation in Hydraulic Oil, or many of the Bio-Degradable Oils commonly used for Compensation circuits.
All motors are designed for external compensation allowing for operation at subsea depths to 4000M. The Motors can also be offered with cooling circuits, to ensure high output motors maintain minimal operating temperatures at Full Load.

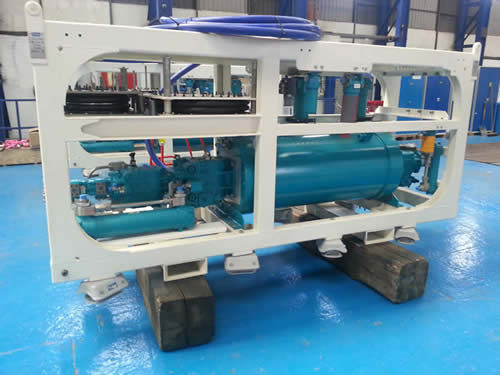

Subsea Submersible ROV motor, fitted with a heat exchanger.
SME Motors are fitted with Water Detection Probes and Temperature Detectors, and these can be terminated to a variety of different Subsea Connectors. Power can be supplied to the motors through Subsea Connectors or Highly reliable Oily Tube Connections.
SME's extensive testing facilities ensure we can test these Subsea Motors at rated Voltage and Frequency.
This testing can also involve Hydraulic Load testing on a HPU, or Flow and Pressure Testing of Jetting Pumps in our test tank. Full string testing involving the Drives, Control Gear, Motor and Driven equipment can also be organised.
Submersible Motor Engineering's extensive Service Capability also ensures we are best location for Service and refurbishment of Subsea Motors of any other manufacturer. Quite often SME can return motors to their clients in a better than new condition, due to our ability to implement the latest Engineering Practices into the repair process.
SME PROFILE.
Submersible Motor Engineering is an Australian Company that designs and manufactures Submersible and Subsea Electric Motors for the Global Market.
SME has the ability to design and produce specialist electric motors for complex applications, in many cases for a "one off' requirement.
SME should be the company of choice for you to work with. To provide high quality Engineered Solutions for your Submersible and Subsea Electric Motor requirements.
SME offers a Repair, Rewind, Modification, and Technical Support Service in Perth, and in Phoenix. Our facilities ensure that we can handle any job we are confronted with, regardless of complexity.
Our purpose built testing facility ensures absolute confidence in workmanship and reliability for our clients.
When it comes to Sales and Service of Submersible and Subsea Motors, SME's extensive range of worldwide locations ensures that we can provide Excellent Service and Technical Support on our own SME range of products, but also the products from all other manufacturers of Submersible Motors and Subsea Motors.
Submersible Motor Engineering design, manufacture, and supply, Submersible Electric Motors for Deep Well Pumps, Subsea Electric Motors and Submersible Electric Motors for Sump pumps, and any special purpose submersible electric motor requirements. SME also offer Subsea Electric Generators for Tidal and River Power Generation. SME has extensive service, repair, maintenance and testing capabilities, at our purpose built facilities in Western Australia and Arizona. SME can provide solutions for any submersible or subsea electric motor applications– from design and speci?cation through to servicing, repair and/or replacement. Our experience and commitment to quality allows our clients complete con?dence that their requirements are in the best possible hands.
Subsea Electric Motors & ROV Electric Motors.
SME design and manufacture a world leading range of Subsea Electric Motors, including motors for HPU’s on ROV‘s, Electric Thrusters for Manned Submarines, and Heavy Duty Jetting Pumps on Subsea Trenchers. SME motors are robust and reliable in the toughest of environments. Our ?exible design capabilities mean we can manufacture Subsea Motors to suit any application. Our range of motors allow Flexible External Dimensions to suit all requirements and provide the possibility of “Drop In‘’ replacement motors. SME have produced over l00 different types of Subsea motors and thousands of motors.
We offer a variety of Construction Materials from Anodised Aluminium to Exotic Stainless Steel Alloys to ensure long term reliability in varied environments whilst still offering the advantages of light weight design. To ensure the integrity of the motors SME does not use castings and all components are manufactured from solid metal or extrusions.
Motors can be offered with a variety of Interfaces for Driven Equipment — from Robust Shafts with Multiple Shaft Seals to Close Coupled Motors with Female Spline Hubs to allow direct ?tment of Hydraulic Pumps.
SME can design and manufacture from the “Lamination Up” to ensure the Motor is ideally suited for the application. This bespoke Manufacturing policy ensures we can meet any special design requirements. SME can build motors from Fractional Kilowatt Motors right through to large outputs in the Megawatts and above to ensure we meet all requirements.
SME Subsea Motors can be manufactured in all voltages from 24V through to 6600V at 50Hz or 60Hz, or for use with Variable Speed Drives. Due to SME’s proprietary Insulation System motors up to 4l60V can be built with a Random Winding to reduce size and weight whilst losing nothing in terms of reliability. This insulation system is speci?cally engineered to ensure suitability of operation in Hydraulic Oil or many of the Bio-Degradable Oils commonly used for Compensation circuits.
All motors are designed for external compensation allowing for operation at depths as deep as 4000M. The Motors can also be offered with Cooling circuits to ensure high output motors maintain minimal operating temperatures at Full Load. SME Motors are ?tted with Water Detection Probes and Temperature Detectors and these can be terminated to a variety of different Subsea Connectors. Power can be supplied to the motors through Subsea Connectors or Highly reliable Oily Tube Connections.
SME’s extensive testing facilities ensure we can test these Subsea Motors at rated Voltage and Frequency. This testing can also involve Hydraulic Load testing on a HPU, or Flow and Pressure Testing of Jetting Pumps in our Test tank. Full string testing involving the Drives, Control Gear, Motor and Driven equipment can also be organised.
Submersible Motor Engineering’s extensive Service Capability also ensures we are the best location for Service and Refurbishment of Subsea Motors of any manufacturer. Quite often SME can return motors to their clients in a better than new condition due to our ability to implement the latest Engineering Practices into the repair process.
Service And Repair Of Submersible Electric Motors
A new service, repair, maintenance and testing facility is being opened in England (UK).
SME has extensive service, repair, maintenance and testing capabilities, at our purpose built facilities in Western Australia and Arizona. SME can provide a solution for submersible electric motors – from design and speci?cation through to servicing, repair and/or replacement. Our experience and commitment to quality allows our clients complete con?dence that their requirements are in the best possible hands.
SME specialises in minimizing downtime for critical application submersible electric motors by providing an ef?cient and cost effective mechanical repair and rewinding service at our ISO 9001 accredited facilities. Our experienced technicians are proficient at working with all brands of submersible electric motors and can quickly return motors back to service. We also maintain detailed records of motor failures across all brands which assist with plant management. SME is well quali?ed to offer advice to prevent future faults.
Motor Modification
SME can modify and upgrade all brands of submersible electric motors during the repair and servicing process to meet the requirements of any application. These modifications can include changing materials, adding temperature sensors, re-design to suit different voltages and frequencies, applying protective coatings, offering extended cable lengths and splicing cables, replacing damaged, corroded, or worn parts and other application specific alterations. SME has the “in house” machining and fabrication capabilities to manufacture obsolete parts ensuring maximum life for motors are achieved.
In-Field Support
SME can provide a number of site support services to ensure the reliability and performance of our clients‘ submersible motors. Our experienced ?eld service engineers can provide installation, commissioning, fault finding supervision, and training.
Testing
SME‘s factory facility, located in Perth, provides for an extensive testing regime for repaired and overhauled motors. SME can full load test motors on our dynamometers and can also offer performance testing of complete pump/motor units in our purpose built test tank – at the speci?ed voltage and frequency up to 6600 volts.
SME can guarantee motors that have been serviced and repaired are fully tested before dispatch, providing customers with complete confidence in the work prior to re-installation. All motors that are rewound by SME are subject to an immersion pressure test which is conducted in our pressure test vessel to ensure the integrity of the windings prior to assembly and load testing. Our commitment to a strict testing regime protects our clients from the risks of downtime caused by unexpected failure.
Submersible Motors
SME design and manufacture a broad range of Submersible Electric Motors, including motors for variety of applications from Mine De-watering to Sea Water Lift Pumps. SME motors are robust and reliable in the toughest of environments. Our ?exible design capabilities mean we can manufacture Submersible Motors to suit most applications. Our range of motors include Flexible Interface Dimensions to suit all requirements and provide the possibility of “Drop In‘’ replacement motors.
We offer a variety of Construction Materials from Cast Iron, SS316 Grade Stainless Steels as Standard to Exotic Stainless Steel Alloys to ensure long term reliability in varied environments whilst still offering the advantages of excellent performance.
Motors can be offered with a variety of Interfaces for a broad range of Pump types — from Standard NEMA and IEC frames to unique Flange and shaft arrangements with Multiple Shaft Seals.
SME can design and manufacture from the “Lamination Up” to ensure the Motor is ideally suited for the application. This bespoke Manufacturing policy ensures we can meet any special design requirements. SME can build motors from small Kilowatt Motors right through to large outputs in the Megawatts and above to ensure we meet all requirements.
SME Submersible Motors can be manufactured in all voltages from 110V through to 6600V at 50Hz or 60Hz, or for use with Variable Speed Drives. Due to SME’s flexible manufacturing systems we can offer motors in water or oil filled constructions. Motors can be provided for internally balanced or header tank installations.
SME’s extensive testing facilities ensure we can test these Submersible Motors at rated Voltage and Frequency. This testing can also involve Hydraulic Performance testing on a customers pump in our Test tank. Full string testing involving the Drives, Control Gear, Motor and Driven equipment can also be organised.
Submersible Motor Engineering’s extensive Service Capability also ensures we are the best location for Service and Refurbishment of Submersible Motors of any manufacturer. Quite often SME can return motors to their clients in a better than new condition due to our ability to implement the latest Engineering Practices into the repair process.
SME – WD Series Motors.
For Open Well or Sump Applications Submerged or not Submerged, With Cast Iron, Steel, or Stainless Steel Construction.
SME has many years experience in the manufacture of submersible motors and the WD series of motors have been designed for the toughest jobs to ensure reliability and a long service life. When conditions are extreme and performance is critical these motors deliver the quality and durability required.
WD motors are designed for continuous operation in sludge, effluent, slurry, and other liquids – to a submergence of 10 metres, in an open well, a river bank, a tailings pond, or a sump. The motors are air filled, with a separate oil ?lled seal chamber to ensure robust sealing of the drive shaft. The WD Series motors can also be supplied with a large range of sealing options to ensure the motor is suitable for the most extreme conditions from a combination of lip seals, and/or mechanical seals, to complex cartridge seal arrangements.
If the motors are going to be continuously submerged they will rely on the liquid they are submerged in for cooling. If they are not going to be submerged continuously – or only intermittently — they are designed with a water jacket for cooling and water is usually bled from the pump through the water jacket.
These IP68 motors have been used in both vertical and horizontal applications driving a diverse range of pumps in many unique applications. The Motors can be supplied with an extensive array of ?ange and shaft dimensions to ensure the motors can be matched to a large range of different pumps. The motors can also be supplied with standard IEC and NEMA ?ange and shaft dimensions.
The motors are very robust and designed to take the physical abuse on a typical mine site. They can tolerate overloads, and a lack of cooling. They can maintain full load operation for 15 minutes with no external cooling. These motors offer a robust alternative to other units that suffer from shorter operating lives – with no changes to the existing Wet end performance.
These motors are ?tted with moisture detection probes and PT100, or themistor, thermal protection — as standard – and provided these are properly connected and set to give advance warning of problems these motors will give many years of reliable service in extreme applications.
Water Cooled Motors
SME design and manufacture a range of Water Cooled Electric Motors to provide a alternative to Standard Air Cooled Vertical Hollow and Solid Shaft Motors, these motors are for variety of line shaft turbine applications. The removal of the forced air cooling and replacement with a water jacket fed from the discharge of the pump ensures almost silent operation. This makes them uniquely suitable for pumping applications where noise is critical during operation. SME motors are robust and reliable in the toughest of environments. Our ?exible design capabilities mean we can manufacture Water Cooled Motors to suit most applications. Our range of motors include Flexible Interface Dimensions to suit all requirements and provide the possibility of “Drop In‘’ replacement motors.
We offer a variety of Construction Materials from Cast Iron, SS316 Grade Stainless Steels as Standard to Exotic Stainless Steel Alloys to ensure long term reliability in varied environments whilst still offering the advantages of excellent performance.
Motors can be offered with a variety of Interfaces for a broad range of Pump types — from Standard NEMA P Base and IEC frames to unique Flange and shaft arrangements.
SME can provide Water Cooled Motors with robustly engineered bearing arrangements to ensure pump thrust loads are absorbed adequately to guarantee long term operation.
SME can design and manufacture from the “Lamination Up” to ensure the Motor is ideally suited for the application. This bespoke Manufacturing policy ensures we can meet any special design requirements. SME can build motors from small Kilowatt Motors right through to large outputs in the Megawatts and above to ensure we meet all requirements.
SME Submersible Motors can be manufactured in all voltages from 110V through to 6600V at 50Hz or 60Hz, or for use with Variable Speed Drives. Due to SME’s flexible manufacturing systems we can offer motors in water or oil filled constructions. Motors can be provided for internally balanced or header tank installations.
SME’s extensive testing facilities ensure we can test these Water Cooled Motors at rated Voltage and Frequency. This testing can also involve Hydraulic Performance testing on a customers pump in our Test tank. Full string testing involving the Drives, Control Gear, Motor and Driven equipment can also be organised.
Submersible Motor Engineering’s extensive Service Capability also ensures we are the best location for Service and Refurbishment of Water Cooled Motors of any manufacturer. Quite often SME can return motors to their clients in a better than new condition due to our ability to implement the latest Engineering Practices into the repair process.
SUBSEA PUMPS.
SME design and manufacture a world leading range of Electric and Hydraulically Driven Subsea Pumps. These are designed to operate as Heavy Duty Jetting Pumps on Subsea Trenchers and Ploughs, Subsea Dredging and Excavation Equipment. SME Pumps are robust and reliable in the toughest of environments. Our ?exible design capabilities mean we can manufacture Subsea Pumps to suit most applications. Our range of motors allow Flexible External Dimensions to suit all requirements and provide the possibility of “Drop In‘’ replacement units.
We offer a variety of Construction Materials from Anodised Aluminium to Exotic Stainless Steel Alloys to ensure long term reliability in varied environments whilst still offering the advantages of light weight design.
SME can design and manufacture from “raw material up” to ensure the Motor and Pump is ideally suited for the application. This bespoke Manufacturing policy ensures we can meet any special design requirements. SME can build motor and pumps from Fractional Kilowatt Motors right through to large outputs in the Megawatts and above to ensure we meet all requirements.
SME Electrically Driven Subsea Pumps can be manufactured in all voltages from 24V through to 6600V at 50Hz or 60Hz, or for use with Variable Speed Drives. Due to SME’s proprietary Insulation System motors up to 4160V can be built with a Random Winding to reduce size and weight whilst losing nothing in terms of reliability. This insulation system is speci?cally engineered to ensure suitability of operation in Hydraulic Oil or many of the Bio-Degradable Oils commonly used for Compensation circuits.
All pumps are designed for external compensation allowing for operation at depths as much as 4000M. The Motors can also be offered with Cooling circuits to ensure high output motors maintain minimal operating temperatures at Full Load. SME Motors are ?tted with Water Detection Probes and Temperature Detectors and these can be terminated to a variety of different Subsea Connectors. Power can be supplied to the motors through Subsea Connectors or Highly reliable Oily Tube Connections.
SME’s extensive testing facilities ensure we can test these Subsea Pumps at rated Voltage and Frequency. This testing includes involve Hydraulic Performance/Relibility testing on a HPU or Job Specific Electrical Supply at rated Voltage and Frequency in our Test tank. Full string testing involving the Drives, Control Gear, Motor and Driven equipment can also be organised.
Submersible Motor Engineering’s extensive Service Capability also ensures we are best location for Service and Refurbishment of Subsea Motors and Pumps of any manufacturer. Quite often SME can return motors and pumps to their clients in a better than new condition due to our ability to implement the latest Engineering Practices into the repair process.
Silvercrest / SME.
“Excellence” in the manufacture of “quality” Subsea Electric Motors.
We offer Subsea Electric Motors. Full Range of Speed Options. All Voltages and Frequencies.
All Construction Options from Anodised Aluminium to Exotic Metal Alloys.
Extensive Electrical and Hydraulic Testing Facility.
Engineered Motor Solutions for Complex Applications .
World Leaders in the Design, Manufacture, and Supply of Subsea electric motors. Over 2000 motors delivered and operating worldwide.
Contact us today: Email. sales@silvercrestsubmarines.co.uk
SME products have been designed and developed utilising many years of operating and service experience with submersible motors and subsea motors.
SME are a quality assured company and are certified to ISO 9001 by SGS for “Design, development, manufacture and testing of submersible subsea electric motors”.
SME produce their motors under a rigorous QA procedure to ensure that all motors are supplied in a “Quality and Reliability Assured” condition. In addition to ensuring the motors are supplied in excellent condition, SME believe it is their responsibility to try to ensure that the end users get many years of reliable life from their SME motors.
At SME we try to help the end user – not just sell them a motor in a box. We offer the services of experienced commissioning engineers to go to site and ensure the motors are installed, commissioned, and protected correctly. We also offer full 24 hour service and testing facilities.
At SME we are continually working to improve the performance of our products and for this reason we reserve the right to make changes without notice to any of the data in this brochure.
Please contact us direct for confirmation of any drawings dimensions or performance data.
SME SUBSEA MOTORS
SME can design and build Subsea motors to suit any requirements, due to our totally flexible design capabilities:
Flexible External Dimensions to suit all applications. Dimensions to allow drop in replacement of existing units. Anodised aluminium, or, 316 stainless steel or more exotic materials, such as Duplex.
Power drive to load using an output shaft with a standard coupling, or, close coupled. Single drive shaft, or, a drive shaft at both ends, double shaft extension.
SME can design and build a motor with a completely new lamination to meet special design requirements, if necessary.
SME design their motors so they do not run hot. Typical motors can run on deck for at least ten minutes on full load, with no cooling, without overheating. The motors are designed to be compact in size and suitable for heavy-duty applications, like trenching.
If weight is important, SME can design the motor for minimum weight by utilising an aluminium construction and a hollow motor shaft, while still ensuring the motor is generously rated for full load operations. If the motor is going to drive a hydraulic pump we recommend a close-coupled arrangement to save the weight of the coupling and the coupling housing.
SME can design and build motors for all voltages from 24 volts to 6600V with 50Hz or 60Hz frequencies, or for VVF requirements. High Voltage motors can have random wound stator windings, or formed coils, depending on space and weight constraints. The winding wire for the High Voltage motors is double insulated and passes a twisted wire test at 16,000 volts and is rated up to 155 Deg.C. All windings are designed to keep ‘turn to turn’ voltage to a minimum. All winding materials and cables are specially selected to be suitable for use in hydraulic oils.
In general, SME Subsea motors have low loss lamination steel (3 watts/kg), which allows for higher flux densities, and less heat, with less materials and weight.
All motors are oil filled and we recommend hydraulic oils for good lubrication characteristics in preference to electrical oil ( which has better di-electric capabilities, but worse lubrication capabilities).
If motors are going to drive a water pump, SME can design the motor to take the thrust load from the pump and keep the sea water out of the motor with a single or double mechanical seal arrangement.
Small thruster motors can be designed and built for voltage/speed control, which is a relatively simple speed control system and can be built with a thrust bearing incorporated to take the thrust load from the impeller.
To ensure the integrity of the motor housing, SME does not use castings. All components are machined from solid or from extrusions. The external aluminium components are typically 6061 T6 marine grade aluminium and hard anodized to a military specification.
All ball bearings are from well known brands such as SKF, FAG, or NSK. Oil seals are high temperature and typically made from Viton. Mechanical seals are typically Burgmann.
All hardware used on SME Subsea motors is 316SS.
All fixing holes are blind. Oil in and out fittings and the stator pack-fixing bolt, if applicable are sealed with O rings.
The preferred power cable entry system for SME motors is to use an “oily tube” connected to an adaptor, which is part of an oil tight rubber gland that is fixed to the stator frame. SME do not recommend bringing the power cables through the end-shields of the motor as this creates additional complications when the motors are stripped down during service (because the end-shields cannot be readily removed from the stator). Subsea connectors can be offered as an alternative to the Oily Tube if requested.
SME strongly recommend that the motors are fitted with PT100s fitted in the windings and also to the bearings. The internal motor temperatures are monitored and set up to alarm if the temperatures rise above a safe temperature. SME can also offer additional protection with a water detector. The auxiliary connections for PT100s, can be made through standard high pressure, water tight, plug and sockets as, supplied by “Subconn”, “Impulse”, and “Burton”. These are also fitted to a connection block on the stator, not on the end shield.
All finished motors are pressure tested to ensure they are “oil tight” and suitable for compensated operation down to 4000 metres.
All motors are rated for continuous operation and all prototype motors are full load performance tested at rated voltage and rated frequency to confirm their performance characteristics. All motors can be issued with a “Type Test Certificate” or even full load tested at additional cost, if required.
SME can offer to arrange for hydraulic pumps to be set up and tested on the motors at rated voltage and frequency.
SME can offer to supply Hydraulic Power Units, “complete”, with the addition of customer specified Hydraulic Pump.
SME Subsea motors can be designed and built for all subsea applications, such as ROVs, Trenchers, Ploughs, Submarines and Dredges.
All brands of Subsea motor can be serviced, repaired and tested by SME. In some cases the original motors can be significantly upgraded. If you are having problems with your existing Subsea motor please contact SME – we are ready and able to provide assistance and we are very price competitive.
APPLICATIONS
Driven equipment can include:
Hydraulic Pumps: For ROV Hydraulic Power Units, Subsea Robotics, Thrusters, etc.
Water Pumps: For Jetting Systems, Hull Cleaning, Trenching and Pipe and Cable Laying Equipment, Pipe Pressurisation, Dredging, etc.
Propellers/Impellers: For Remotely Operated Vehicle Thrusters, Manned Submarine Thrusters, Mass Flow Excavation, etc.
Gearboxes: For Subsea Winches, Cable Tensioners and De-reelers.
Fish Pumps.
MATERIALS OF CONSTRUCTION
SME can manufacture Subsea Motors in Aluminium (Grade 6061 T6), Stainless Steel(Grade 316), Duplex (SAF2205), Super Duplex (SAF2507) and other more exotic materials.
VOLTAGES
Motors are available in AC Voltages from 24V to 6600V. Motors up to 4160V in Random Wound Designs. Above 4160V motors are manufactured using a Formed Coil system. Special random wound design motors may be available above 4160V for specific applications.
DEPTH RATING
All SME's Subsea Electric Motors are designed for external compensation and have been used at depths of more than 4000M. Compensation advice can be provided on request.
SPEED
Motors are available in a variety of speeds at both 50Hz and 60Hz.
Synchronous speed at different numbers of poles.
(Hz) 2P 4P 6P 8P 10P 12P
50 3000 1500 1000 750 600 500
60 3600 1800 1200 900 720` 600
Lower speed ratings are available on application. Motors are suitable for operation Using variable speed drives and SME can provide advice on variable speed drive operation if requested.
INSTRUMENTATION
SME Subsea Motors are available with a range of instrumentation:
Bearing and Winding Temperature Monitoring
Water Ingress Detection
Pressure Transducer
Resolvers and Encoders
Tachometers
COOLING
Motors are generally designed to operate with no additional cooling other than the ambient water temperatures but in some cases external cooling may be required. SME can provide motors with closed loop cooling circuits or motors that are suitable for use with externally fed cooling circuits.
ELECTRICAL CONNECTIONS
SME Subsea Motors use an oily tube termination for all power connections as standard. However, appropriately sized and rated Subsea connectors can be used as an alternative, either a Bulkhead Connection on the motor, or as part of a fixed Flying Lead Termination.
Instrumentation is generally terminated using a variety of Subsea Connectors. Customers are free to specify their Connectors of choice.
MECHANICAL INTERFACE
Motors are design built to suit the application and SME can supply a broad range of interfaces from direct coupled arrangements to the use of separate coupling housings.
SHAFTS: Female and Male Spline Shafts, Internal and External Keyed Shafts.
FLANGES: NEMA, IEC, SAE, DIN Standards are all available as well as unique requirements.
Motors can be provided with Double Ended Arrangements to drive multiple loads.
MOTOR MOUNTING
Motors can be provided with various Mounting arrangements including Feet, Flanges, Brackets, or Clamping. In most cases SME can match the mounting interfaces of units being replaced to ensure ease of installation in existing equipment.
Motors can be manufactured for Horizontal or Shaft Up or Down installation.
COMPENSATION REQUIREMENTS
Motors are built to utilise external compensation. Motors are fitted with oil in and out ports as well as several bleed points to facilitate easy plumbing. Fittings can be provided with BSP, NPT or JIC and other fittings with both straight and tapered threads to provided uniformity on the installation.
There are a vast range of acceptable compensation fluids and SME can provide advice in the suitability of various oils.
SME MOTOR RANGE
SME is able to provide many and varied Subsea Motors to suit specific applications. Please contact us to discuss your requirements.
SUBSEA PUMPS

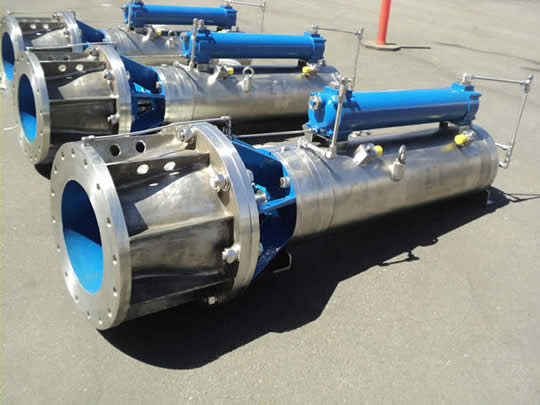

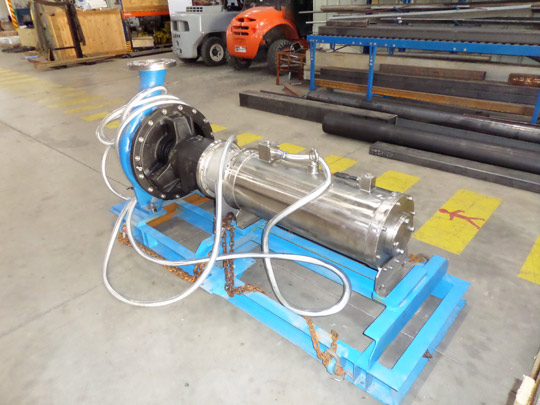

SME design and manufacture a world leading range of Electric and Hydraulically Driven Subsea Pumps. These are designed to operate as Heavy Duty Jetting Pumps on Subsea Trenchers and Ploughs, Subsea Dredging and Excavation Equipment. SME Pumps are robust and reliable in the toughest environments. Our flexible design capabilities mean we can manufacture Subsea Pumps to suit most applications.
We offer a variety of Construction Materials from 316 grade Stainless Steel to Exotic Stainless Steel Alloys, with nickel aluminium bronze impellers.
SME Electrically Driven Subsea Pumps can be manufactured in all voltages from 380V through to 6600V at 50Hz or 60Hz, or for use with Variable Speed Drives.
All pump motors are designed for external compensation allowing for operation at depths as much as 4000M. The Motors can also be offered with Cooling circuits to ensure high output motors maintain minimal operating temperatures at Full Load.
TESTING
SME‘s West Australian facility, located in Perth, provides for an extensive testing regime for repaired and overhauled motors. SME can full load test motors on our dynamometers and can also offer performance testing of complete pump/motor units in our purpose built test tank – at the specified voltage and frequency up to 6600 volts.
SME can guarantee motors that have been serviced and repaired are fit for purpose before dispatch, providing customers with complete confidence in the work prior to re-installation. All motors that re rewound by SME are subject to an immersion pressure test which is conducted in our pressure test vessel to ensure the integrity of the windings prior to assembly and load testing. Our commitment to a strict testing regime protects our clients from the risks of downtime caused by unexpected failure.
Our Factory offers the following equipment:
High Voltage Transformers 1000/2400/3300/4160/6600V
High Current Voltage Regulator
Dynamometer Load Test Equipment 300kW/2600kW
Power Generation 350kVA/1350kVA
15kV Hi Pot and Surge Tester
Subsea Pump Testing Facilities
SME COMPANY PROFILE
Submersible Motor Engineering Pty Ltd is an Australian Company that designs and manufactures Submersible and Subsea Electric Motors for Global Markets. SME has the ability to design and produce specialist electric motors for complex applications, in many cases for a “one off” requirement. SME should be the company of choice to work with to provide High Quality Engineered Solutions for your Subsea Motor requirements.
SME offers a Repair, Rewind Modification, and Technical Support Service, in Perth, and in Phoenix. With a new facility soon to be opened in the United kingdom. Our facilities ensure that we can handle any job we are confronted with, regardless of complexity. Our purpose built testing facility ensures absolute confidence in workmanship and reliability for our clients.
When it comes to Sales and Service of Submersible and Subsea Motors, SME’s range of Worldwide Locations ensures that we can provide excellent service and technical support on our own SME range of products, but also the products from all other manufacturers of Subsea Motors.
Contact us to discuss your submersible subsea electric motors, ROV motors, HPUs, and motor pump sets.
Email:
sales@silvercrestsubmarines.co.uk
Please contact us direct for confirmation of any drawing dimensions or performance data.
